Application

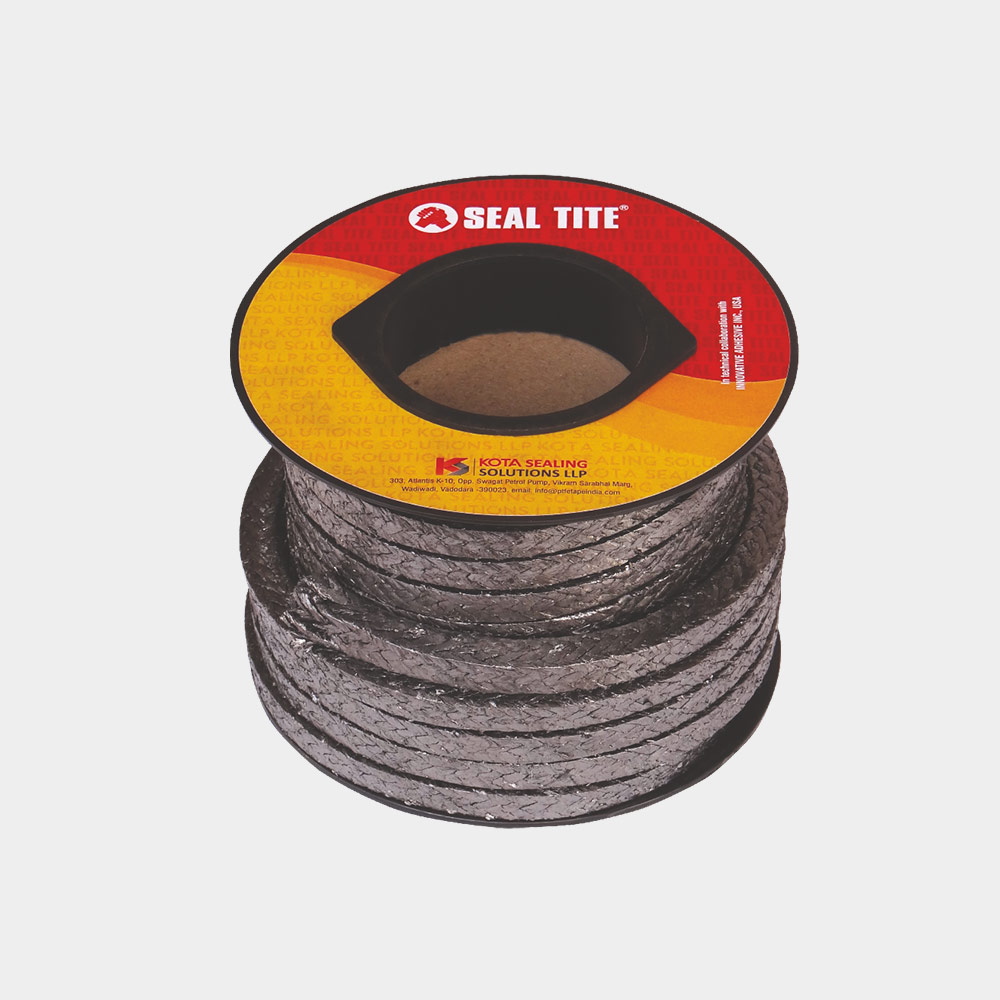

The outstanding properties of flex graphite make it a truly multi-service
packing and interlock braid of wire in yarn, a which make it suitable to
use in high temperature, high-pressure steam service. It can handle most
chemicals, acids and alkalis. It is excellent for use in steam turbines,
high-temperature motor-actuated valves and other valve applications.
Technical Data
| Pressure (bar) | Shaft speed (m/s) | |
|---|---|---|
| Static | 300 | – |
| Rotating | – | – |
| Reciprocating | – | – |
| Temperature(°C) -200 to +450 | pH 0-14 | |
Spool Ordering Information
| Size | mm | 3 | 5 | 6 | 6.5 | 8 | 9.5 | 10 | 11 | 12 | 12.5 | 14 | 16 | 19 | 20 | 22 | 25.5 |
| inch | 1/8 | 3/16 | – | 1/4 | 5/16 | 3/8 | – | 7/16 | – | 1/2 | 9/16 | 5/8 | 3/4 | – | – | 1 | |
| Packaged(±5%) | kg | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | – | – | – | – | – | – |
| – | – | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | – | – | – | ||
| – | – | – | – | – | – | – | – | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
*customized size and length available on request.
